Filter za mazivo za parno turbino

Vacuum Type steam turbine lube oil filter mainly designed to purify various industrial waste oils with the viscosity lower than 320 mm²/s, such as tirbine oil, mechanical oil, hydraulic oil and cooler oil etc. which are polluted by the water infiltration, emulsification and particle pollution etc. in the process of their production, transportation and usage.

S posebno zasnovo sistema za vakuumsko ločevanje in sistema za filtriranje nečistoč lahko čistilniki olja Tongrui učinkovito filtrirajo različna onesnaževala v olju.

Filter mazivnega olja za parno turbino t ima izjemne gospodarske koristi, idealna izbira za storitve vzdrževanja elektrarn,{0}}varčevanje z energijo in zmanjševanje{1}} stroškov.

Posebna zasnova in zrela tehnologija lahko obljubljata indeks olja po{0}}obdelavi:

Vsebnost vode: manjša ali enaka 50 ppm

Natančnost filtracije: 3 mikrone

Delci: ne (z vizualnim testom)

Specifikacije:

◆Spare Parts

1.filtracijski sistem

Thefilter za olje parne turbine

stroj uporablja več-stopenjski sistem filtracije, pred-filter je iz nerjavnega jekla, ki ga je mogoče večkrat oprati, fini filter pa je uvožen material.

2. Ogrevalni sistem

Heating system consists of heater, temperature controller and other components . Multiple sets of heaters can be used alone, can also be put into use at the same time. The start for heater is controlled by the temperature set on the temperature controller.Temperature control device must be started under the running of vacuum pump and oil pump. Therefore, in the three interlocking, not only ensure the safe operation of the heater, but also prevent from producing "dead" oil zone and the oil aging, at the same time it can monitoring the heating system and control the heater works within a set temperature range. When the heater temperature exceeds the set point, the machine can be automatically stop the heater running to ensure the safety of the machine, oil and personnel.

3.Vakumski sistem

Vacuum system consists of a vacuum separator, vacuum pumps, condensers, coolers and other components. Using the " cavitation " principle, the contact area of the oil expands hundreds times of the original in the vacuum separator, while the "cavitation" system and the evaporation surface area of the oil is increasing, and evaporated interface constantly updated to maximize the travel of the oil in the vacuum system and static water evaporation area.

4. avtomatski nadzorni sistem in zaščitni sistem

Avtomatski krmilni sistem je sestavljen iz infrardečih senzorjev, motorjev, elektromagnetnih ventilov, zaščitnih komponent in drugih komponent.
5.hladilni sistem
Sestavljen je iz toplotnega izmenjevalnika, hladilnika, radiatorja, rezervoarja za vodo in drugih komponent. Vodna para in drugi plini, ki nastanejo iz vakuumskega separatorja, se po prehodu skozi toplotni izmenjevalnik v hladilnik, radiator spremenijo v vodo in se zberejo v vodo. Sušilni plin se odvaja z vakuumsko črpalko, s čimer lahko zaščiti vakuumsko črpalko.

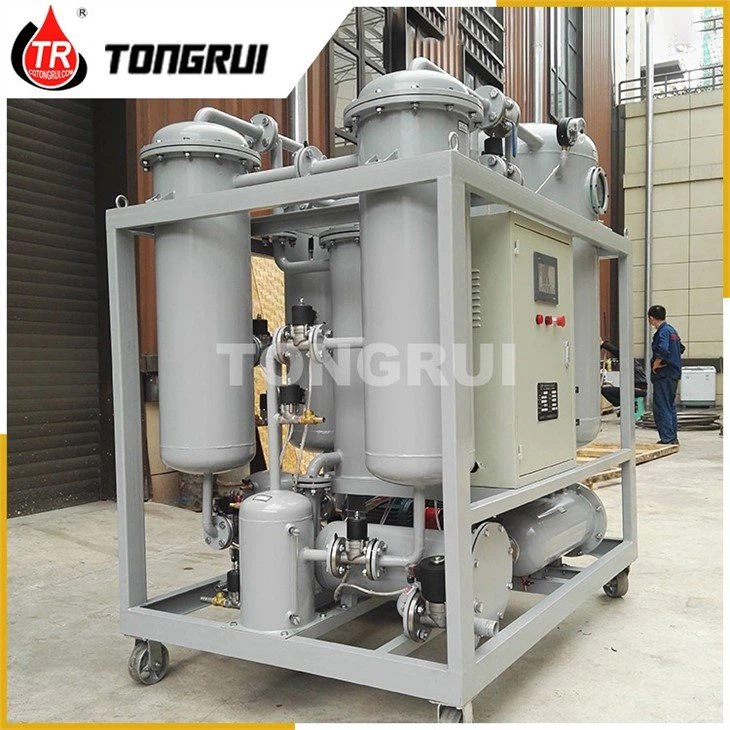

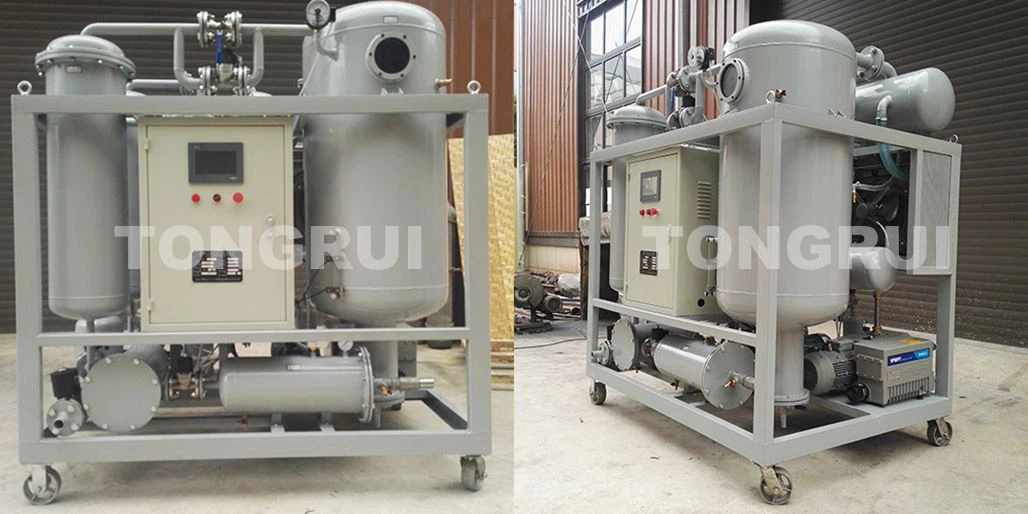

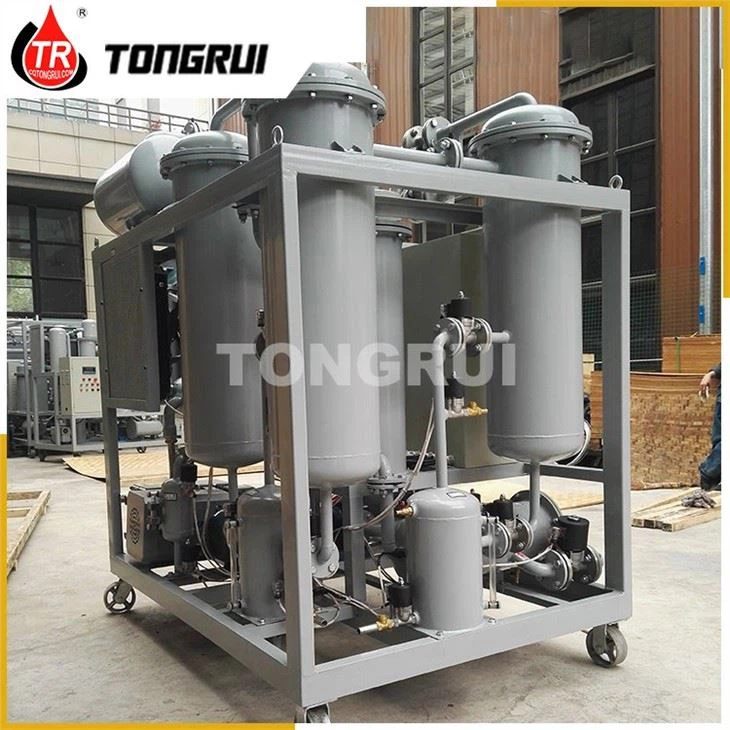

Slike filtra mazalnega olja parne turbine:
